Product material: PA6¡¢PE¡¢PP polyamide
Working temperature£º-40 degree~+125 degree, +140 degree can be reached but kept only for a short time Product authentication: Product Quality Certification by the Ministry of railways.
Supplying scope: fire retardant, fire retardant classification: FV-0
Product property: good flexibility, twist resistance and good bending performance, able to bear heavy loads; acid resistant, lubricant resistant and coolant resistant; luster on surface and abrasion resistant
Load bearing capacity: able to bear the heavy pressure from treading offset without cracking or deformation. It can promptly recoil with no damages.
Application: Machinery building, electrical insulating protection, illuminating equipment, automobile manufacturing, flight equipments, metro, trains and automatic control, etc.
Method: Insert the wires and cables into the pipe and fit respective types of GSB:SM-G and SM series flexible joins before using.
|
Item No. |
Specifications
For flexible pipe |
Outer diameter and tolerance (mm) |
Max. axial pull (Kg) |
Packaging unit ( M ) |
|
GSB-PA-PE-PP10.0 |
AD 10.0 |
6.5X10.0 |
16 |
100 |
|
GSB-PA-PE-PP11.6 |
AD11.6 |
8.0X11.6 |
16 |
100 |
|
GSB-PA-PE-PP13.0 |
AD 13.0 |
10.0X13.0 |
20 |
100 |
|
GSB-PA-PE-PP15.8 |
AD 15.8 |
12.0X15.8 |
30 |
100 |
|
GSB-PA-PE-PP18.5 |
AD 18.5 |
14.3X18.5 |
40 |
100 |
|
GSB-PA-PE-PP21.2 |
AD 21.2 |
17.0X21.2 |
45 |
100 |
|
GSB-PA-PE-PP25.0 |
AD 25.0 |
20.0X25 |
45 |
50 |
|
GSB-PA-PE-PP28.5 |
AD 28.5 |
23.0X28.5 |
50 |
50 |
|
GSB-PA-PE-PP34.5 |
AD34.5 |
29X34.5 |
60 |
50 |
|
GSB-PA-PE-PP42.5 |
AD 42.5 |
36X42.5 |
70 |
50 |
|
GSB-PA-PE-PP54.5 |
AD 54.5 |
48.0X54.5 |
90 |
25 |
|
Your positon: Home > Flame Retardant Polyamide Flexible Pipe

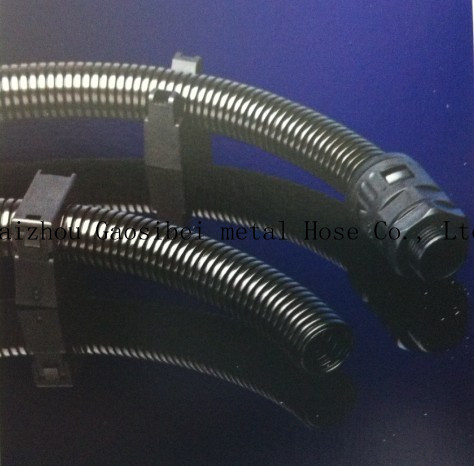

Flame Retardant Polyamide Flexible Pipe25
Product Description£º
